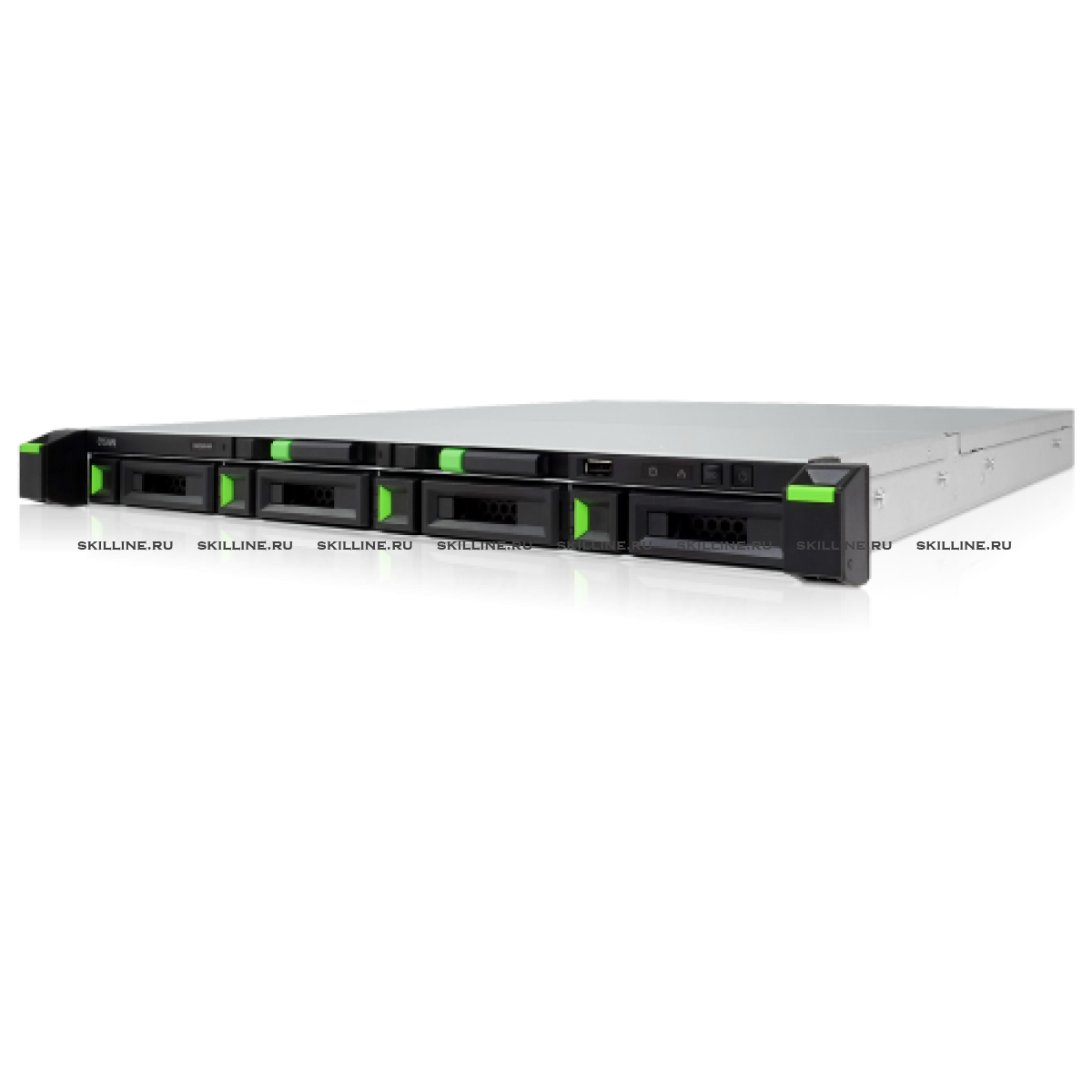

QSAN XCubeNAS XN5004R (XN5004R)

Intel® Celeron® 2.9GHz Dual-Core Processor, 8GB DDR4 SO-DIMM (Max 32GB), High-Speed 10GbE Adapter Card, подключение до 8 портов расширения


Не нашли то, что искали?

Оставьте запрос и наши менеджеры подберут нужную модель!


ArchitectureSingle Controller
Storage OSQSM 3
CPU
ProcessorIntel ® Celeron ®
CPU Architecture64-bit
CPU FrequencyDual-Core 2.9GHz
Memory
Memory Module Pre-installed8GB DDR4 U-DIMM
Total Memory Slots4
Memory Expandable up to64 GB
Notes-
Storage
Drive Bays

3.5" Slot x 4

2.5" Slot x 2

Maximum Drive Bays with Expansion Unit198
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity72TB
Maximum Raw Capacity with Expansion Units3138TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 4 + 3.84 TB drive x 2
  • Capacity may vary by RAID types
External Port
USB 2.0 Port1 (Front)
USB 3.0 Port4 (Rear)
HDMI Port1
OthersConsole Port x1
Notes-
Connectivity Port
1GbE RJ45 LAN Port4 (Onboard)
10GbE RJ45 LAN Port2 (Option: RHBE10R2)
10GbE SFP+ LAN Port2 (Option: XN-E1002)
Thunderbolt 32 (Option: XN-TB302)
16Gb SFP+ Fibre Channel-
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port2 (Option: XN-S1202)
NotesFor more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot1
Gen3x4 Slot-
NotesFor more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot-
Gen2x4 Slot-
Notes-
Appearance
Dimension (H x W x D) (mm)44 x 438 x 510
Chassis Form Factor19" Rackmount 1U 4+2 Bay
Net Weight (kg)-
Gross Weight (kg)-
Notes-
Memory Protection
Cache-to-Flash Module-
Battery Backup Module + Flash Module-
Notes-
Others
System Fan40mm x 40mm x 3 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter250W x2
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption107 W (Access)
83 W (HDD Hibernation)
British Thermal Unit364 BTU/hr (Access)
284 BTU/hr (HDD Hibernation)
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

SASO

EAC

Notes-
Warranty
Standard Warranty3 years
Notes-

Быстрый доступ к файлам

  • Web Finder
    Не требуется установки приложений, вы можете легко найти свой NAS
  • XFinder
    XFinder - утилита для поиска XCubeNAS в локальной сети

Lightest SMB Multi-function Data Center

  • WORM
    WORM technology is designed to prevent intentional modification and help your data away from ransomware attacks.
  • XReplicator
    The most reliable and efficient PC backup solution on XCubeNAS.
  • XMirror
    You can regularly synchronize a volume or the contents of a folder between multiple XCubeNAS devices.
  • Rsync
    Data copies can be distributed to your trusted storage locations through real-time remote backup.
  • Snapshot Replication
    Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.
  • File Retention
    Automatically file management increases the efficiency of the storage capacity.
