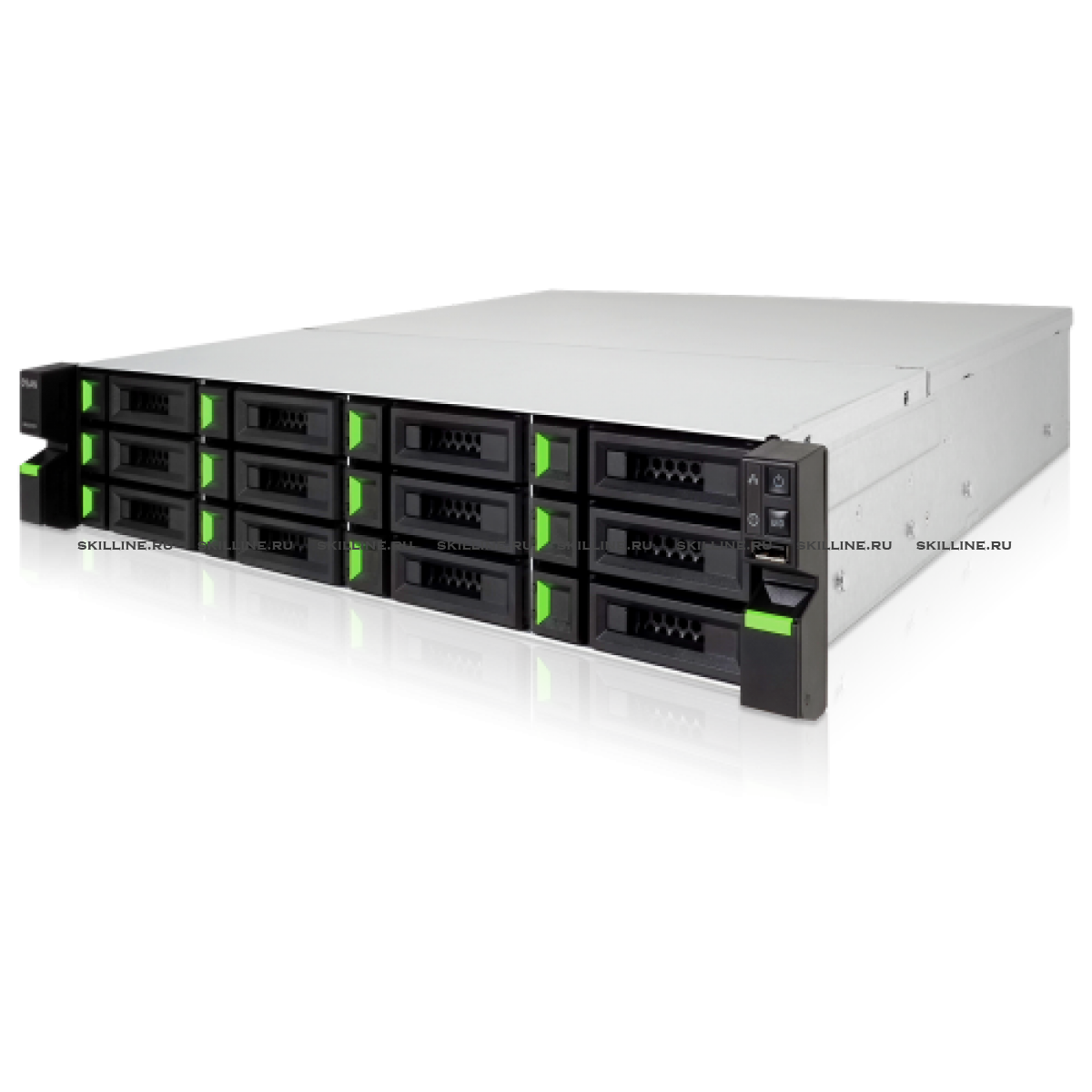

QSAN XCubeNAS XN5012RE (XN5012RE)

Intel® Celeron® 2.9GHz Dual-Core Processor, 8GB DDR4 SO-DIMM (До 64GB), подключение до 8 портов расширения, High Speed 10GbE Adapter Card

Снято с производства

Не нашли то, что искали?

Оставьте запрос и наши менеджеры подберут нужную модель!


Architecture All-in-one
Storage OS QSM 3
CPU
Processor Intel® Celeron®
CPU Architecture 64-bit
CPU Frequency Dual-Core 2.9GHzz
Memory
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory >Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 12

Maximum Drive Bays with Expansion Unit 204
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity 192TB
Maximum Raw Capacity with Expansion Units 3264TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 12
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 4 (Onboard)
10GbE RJ45 LAN Port 2 (Option: THBE10R2)
10GbE SFP+ LAN Port 2 (Option: XN-E1002)
Thunderbolt 3 2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port 2 (Option: XN-S1202)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot 1
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 510
Chassis Form Factor [#3-ERROR] key:XN5012RE_S68
Net Weight (kg) 12.7
Gross Weight (kg) 14.1
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 60mm x 60mm x 3 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 250W x2
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 300 W (Access)
168 W (HDD Hibernation)
British Thermal Unit 1023 BTU/hr (Access)
573 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

Notes -
Warranty
Standard Warranty 3 years
Notes -

Быстрый доступ к файлам

  • Web Finder
    Не требуется установки приложений, вы можете легко найти свой NAS
  • XFinder
    XFinder - утилита для поиска XCubeNAS в локальной сети

Lightest SMB Multi-function Data Center

  • WORM
    WORM technology is designed to prevent intentional modification and help your data away from ransomware attacks.
  • XReplicator
    The most reliable and efficient PC backup solution on XCubeNAS.
  • XMirror
    You can regularly synchronize a volume or the contents of a folder between multiple XCubeNAS devices.
  • Rsync
    Data copies can be distributed to your trusted storage locations through real-time remote backup.
  • Snapshot Replication
    Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.
  • File Retention
    Automatically file management increases the efficiency of the storage capacity.
