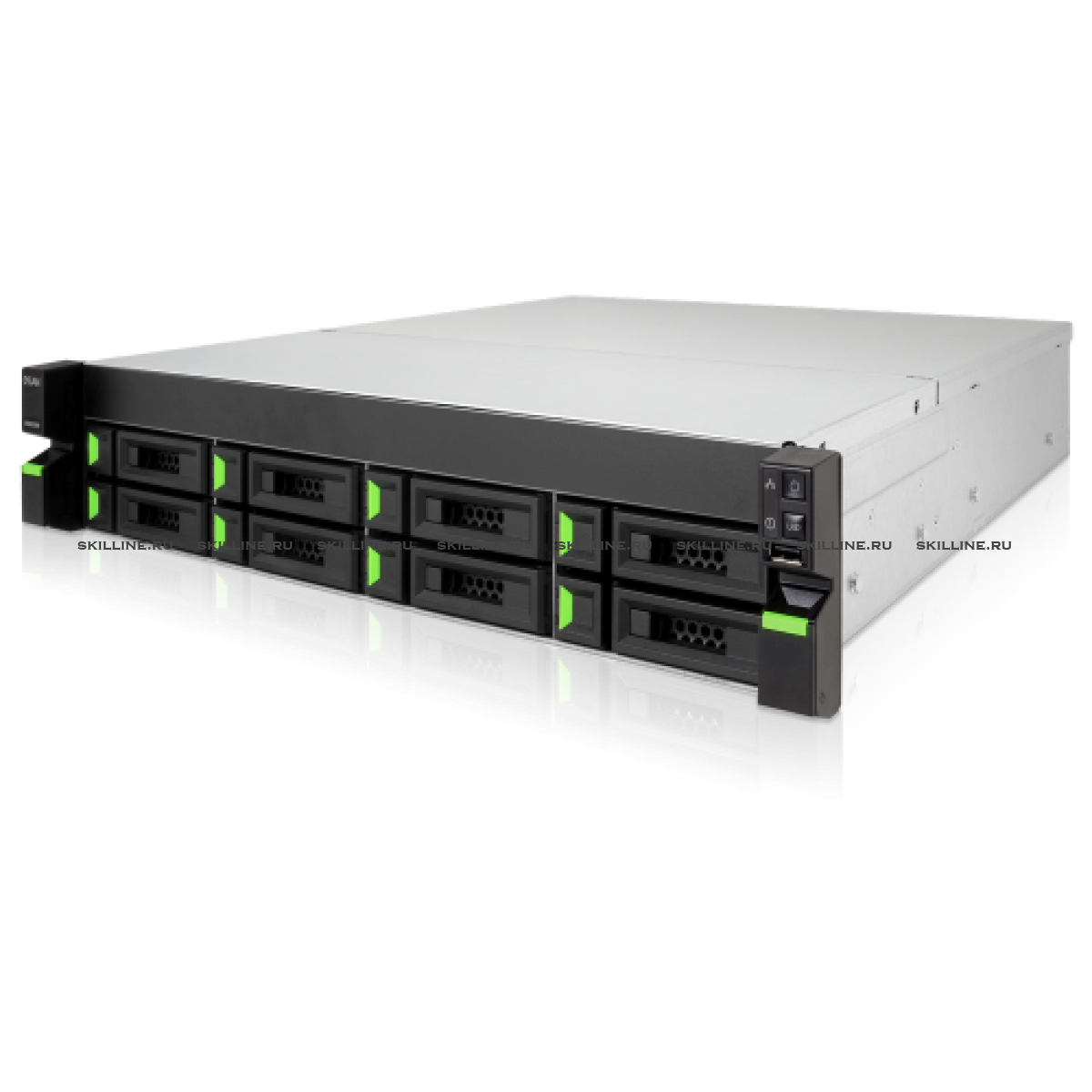

QSAN XCubeNAS XN7008RE (XN7008RE)

Intel® Core i3 3.9GHz Dual-Core Processor, 8GB DDR4 SO-DIMM (До 64GB), Подключение до 8 портов расширения, Support 12Gb/s SAS Adapter Card

Снято с производства

All Flash массив XF3126D со склада в Москве

Не нашли то, что искали?

Оставьте запрос и наши менеджеры подберут нужную модель!

Оставить запрос

Характеристики
Полное описание

CPU
Architecture	Single Controller
Storage OS	QSM 3
Processor	Intel® Core™ i3
CPU Architecture	64-bit
CPU Frequency	Dual-Core 3.9GHz
Memory
Memory Module Pre-installed	8GB DDR4 U-DIMM
Total Memory Slots	4
Memory Expandable up to	64 GB
Notes	-
Storage
Drive Bays	3.5" Slot x 8
Maximum Drive Bays with Expansion Unit	200
Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Drive Interface	SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity	128TB
Maximum Raw Capacity with Expansion Units	3200TB
Hot Swappable Drive	✓
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum internal raw capacity= 16 TB drive x 8 Capacity may vary by RAID types
External Port
USB 2.0 Port	1 (Front)
USB 3.0 Port	4 (Rear)
HDMI Port	1
Others	Console Port x1
Notes	-
Connectivity Port
1GbE RJ45 LAN Port	4 (Onboard)
10GbE RJ45 LAN Port	2 (Option: THBE10R2)
10GbE SFP+ LAN Port	2 (Option: XN-E1002)
Thunderbolt 3	2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel	-
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	2 (Option: XN-S1202)
Notes	For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot	1
Gen3x4 Slot	1
Notes	For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot	-
Gen2x4 Slot	-
Notes	-
Appearance
Dimension (H x W x D) (mm)	88.5 x 438 x 510
Chassis Form Factor	19" Rackmount 2U 8 Bay
Net Weight (kg)	12.7
Gross Weight (kg)	14.1
Notes	-
Memory Protection
Cache-to-Flash Module	-
Battery Backup Module + Flash Module	-
Notes	-
Others
System Fan	60mm x 60mm x 3 pcs
Replaceable System Fan	✓
Power Recovery	✓
Scheduled Power On/Off	✓
Wake on LAN/WAN	✓
Power Supply Unit / Adapter	250W x2
Redundant Power Supply	✓
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	231 W (Access) 111 W (HDD Hibernation)
British Thermal Unit	788 BTU/hr (Access) 379 BTU/hr (HDD Hibernation)
LCM Support	✓
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC BSMI VCCI RCM
Notes	-
Warranty
Standard Warranty	3 years
Notes	-

Быстрый доступ к файлам

Web Finder
Не требуется установки приложений, вы можете легко найти свой NAS
XFinder
XFinder - утилита для поиска XCubeNAS в локальной сети

Best Enterprise-Level Encryption solution for Entry Enterprise and SMB

SED
Support Self-encrypting drive technology.
Smart Snapshot Retention
More protection but less resources.
Rsync
Data copies can be distributed to your trusted storage locations through real-time remote backup.
AES256 Encryption
Pool Encryption fulfill Military regulations.
Qouta
Effective management, optimize allocating.
Storage for Virtualization
Compatible with virtualization standard for VMware® vSphere™，Veeam™，Microsoft® Hyper-V.
