QSAN XCubeNAS XN7008T (XN7008T)

Intel® Core i3 3.9GHz Dual-Core Processor, 8GB DDR4 SO-DIMM (Max 32GB), установка дисков и обслуживание без использования инструментов, High-Speed 10GbE Adapter Card


Не нашли то, что искали?

Оставьте запрос и наши менеджеры подберут нужную модель!


ArchitectureAll-in-one
Storage OSQSM 3
CPU
ProcessorIntel® Core™ i3
CPU Architecture64-bit
CPU FrequencyDual-Core 3.9GHz
Memory
Memory Module Pre-installed8GB DDR4 SO-DIMM
Total Memory Slots2
Memory Expandable up to32 GB
Notes-
Storage
Drive Bays

3.5" Slot x 8

2.5" Slot x 1

Maximum Drive Bays with Expansion Unit-
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity132TB
Maximum Raw Capacity with Expansion Units-
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 8 + 3.84 TB drive x 1
  • Capacity may vary by RAID types

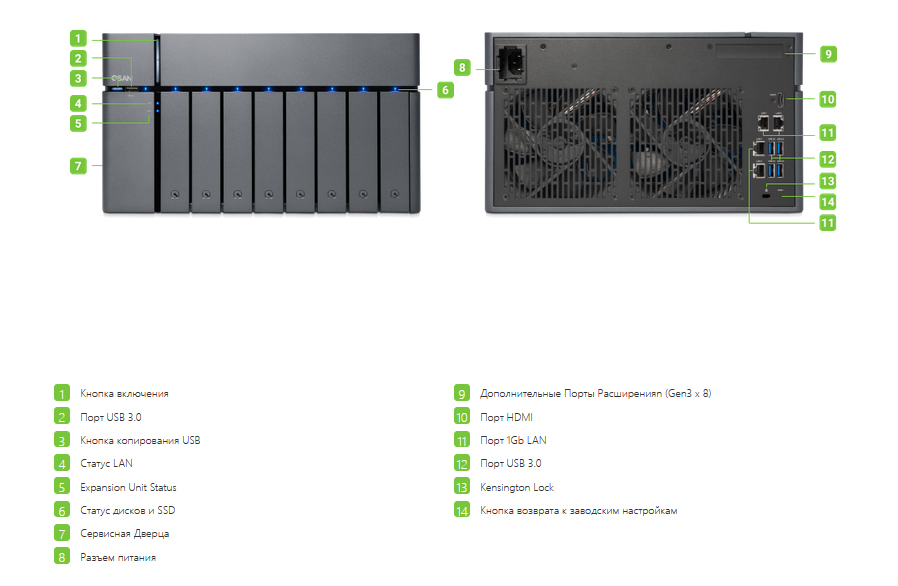

External Port
USB 2.0 Port-
USB 3.0 Port5 (Front: 1, Rear: 4)
HDMI Port1
Others-
Notes-
Connectivity Port
1GbE RJ45 LAN Port4 (Onboard)
10GbE RJ45 LAN Port2 (Option: THBE10R2)
10GbE SFP+ LAN Port2 (Option: XN-E1002)
Thunderbolt 32 (Option: XN-TB302)
16Gb SFP+ Fibre Channel-
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port-
Notes-
PCIe Expansion
Gen3x8 Slot1
Gen3x4 Slot-
NotesFor more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot-
Gen2x4 Slot-
Notes-
Appearance
Dimension (H x W x D) (mm)177 x 310 x 235
Chassis Form FactorTower 8+1 Bay
Net Weight (kg)4.8
Gross Weight (kg)6
Notes-
Memory Protection
Cache-to-Flash Module-
Battery Backup Module + Flash Module-
Notes-
Others
System Fan120mm x 120mm x 2 pcs
Replaceable System Fan-
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / AdapterFLEX ATX 200W
Redundant Power Supply-
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption-
British Thermal Unit-
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

SASO

EAC

Notes-
Warranty
Standard Warranty2 years
Notes-

Быстрый доступ к файлам

  • Web Finder
    Не требуется установки приложений, вы можете легко найти свой NAS
  • XFinder
    XFinder - утилита для поиска XCubeNAS в локальной сети

Best Enterprise-Level Encryption solution for Entry Enterprise and SMB

  • SED
    Support Self-encrypting drive technology.
  • Smart Snapshot Retention
    More protection but less resources.
  • Rsync
    Data copies can be distributed to your trusted storage locations through real-time remote backup.
  • AES256 Encryption
    Pool Encryption fulfill Military regulations.
  • Qouta
    Effective management, optimize allocating.
  • Storage for Virtualization
    Compatible with virtualization standard for VMware® vSphere™,Veeam™,Microsoft® Hyper-V.

Идеальная архитектура

  • Увеличьте производительность, используя SSD кэширование
  • Корпус со скрытой вентиляцией
  • Управление скоростью вращения вентилятора
  • Установка без использования инструментов
  • Простой и интуитивно понятный
  • Магнитный ключ
