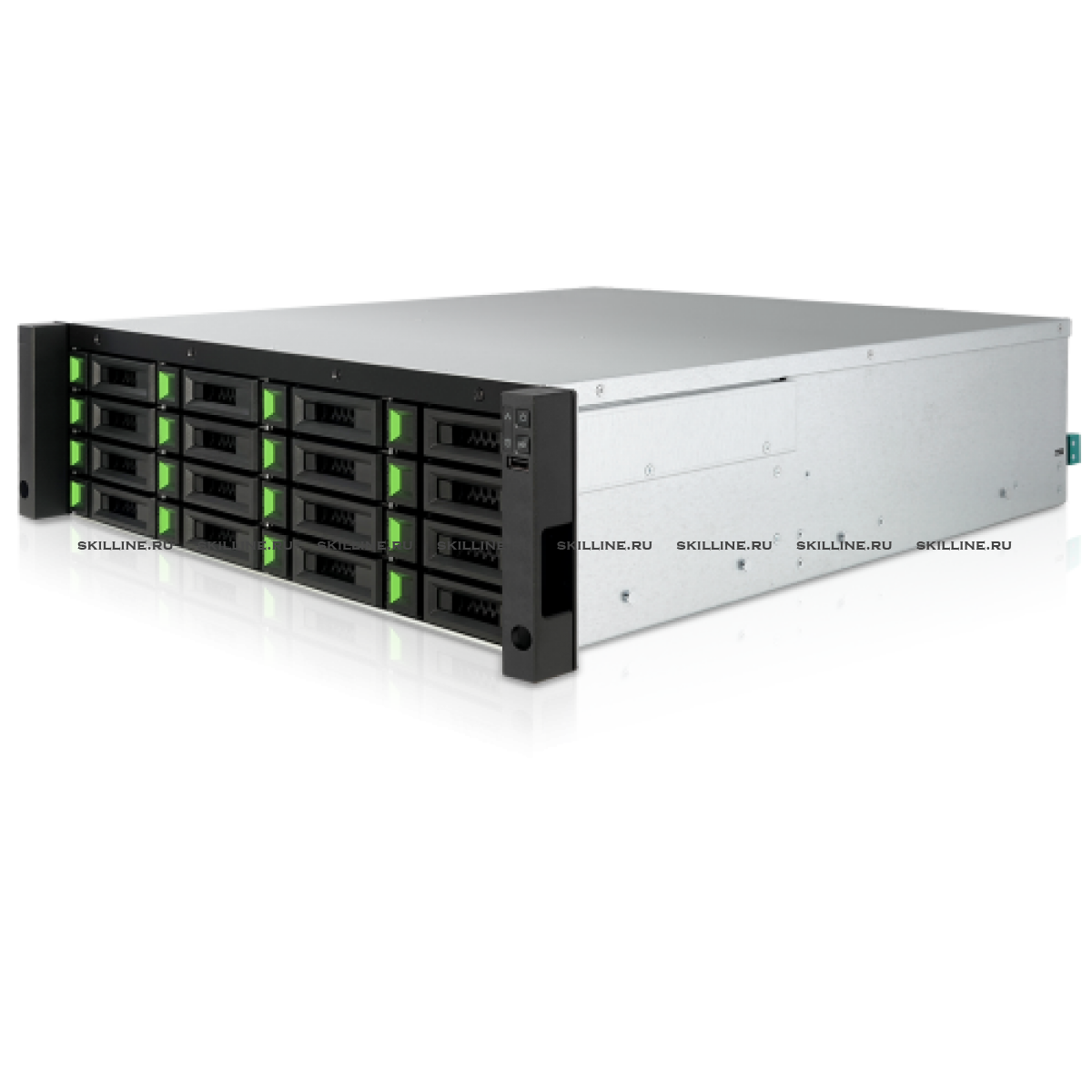

QSAN XCubeNAS XN7016R (XN7016R)

Intel® Pentium® 1.6GHz Quad-Core Processor, 8GB DDR4 ECC U-DIMM (Max 128GB), Built-in 10GbE solution, Modulization Hardware Platform Design


Не нашли то, что искали?

Оставьте запрос и наши менеджеры подберут нужную модель!


ArchitectureAll-in-one
Storage OSQSM 3
CPU
ProcessorIntel® Pentium®
CPU Architecture64-bit
CPU FrequencyQuad-Core 1.6GHz
Memory
Memory Module Pre-installed8GB DDR4 ECC U-DIMM
Total Memory Slots4
Memory Expandable up to128 GB
Notes-
Storage
Drive Bays

3.5" Slot x 16

Maximum Drive Bays with Expansion Unit208
Compatible Drive Type

3.5" SAS HDD

3.5" SATA HDD

2.5" SAS SSD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SAS 12Gb/s and SATA 6Gb/s
(backward compatible with SAS 6Gb/s and SATA 3Gb/s)

Maximum Internal Raw Capacity256TB
Maximum Raw Capacity with Expansion Units3328TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 16
  • Capacity may vary by RAID types

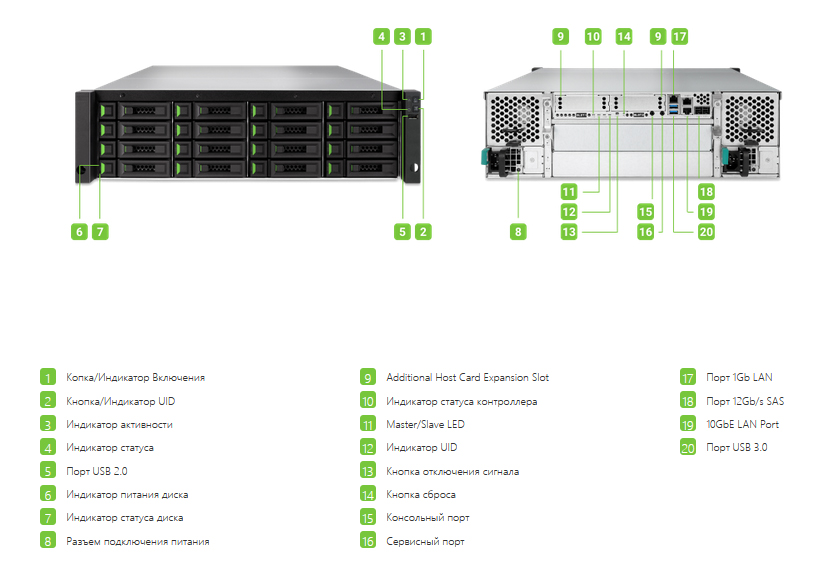

External Port
USB 2.0 Port1 (Front)
USB 3.0 Port2 (Rear)
HDMI Port-
OthersConsole Port x1
Notes-
Connectivity Port
1GbE RJ45 LAN Port1 (Onboard)
4 (Option: HQ-01G4T)
10GbE RJ45 LAN Port2 (Onboard)
2 (Option: HQ-10G2T)
10GbE SFP+ LAN Port4 (Option: HQ-10G4S2)
Thunderbolt 3-
16Gb SFP+ Fibre Channel4 (Option: HQ-16F4S2)
2 (Option: HQ-16F2S2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port2 (Onboard)
Notes-
PCIe Expansion
Gen3x8 Slot-
Gen3x4 Slot-
Notes-
Host Card Expansion
Gen3x8 Slot1
Gen2x4 Slot1
NotesGen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)130.3 x 438 x 515
Chassis Form Factor19" Rackmount 3U 16 Bay
Net Weight (kg)21.7
Gross Weight (kg)29.1
Notes-
Memory Protection
Cache-to-Flash Module-
Battery Backup Module + Flash Module-
Notes-
Others
System Fan80mm x 80mm x 4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption203 W (Access)
200 W (HDD Hibernation)
British Thermal Unit692 BTU/hr (Access)
681 BTU/hr (HDD Hibernation)
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

BSMI

VCCI

Notes-
Warranty
Standard Warranty3 years
Notes-

Быстрый доступ к файлам

  • Web Finder
    Не требуется установки приложений, вы можете легко найти свой NAS
  • XFinder
    XFinder - утилита для поиска XCubeNAS в локальной сети

Best Enterprise-Level Encryption solution for Entry Enterprise and SMB

  • SED
    Support Self-encrypting drive technology.
  • Smart Snapshot Retention
    More protection but less resources.
  • Rsync
    Data copies can be distributed to your trusted storage locations through real-time remote backup.
  • AES256 Encryption
    Pool Encryption fulfill Military regulations.
  • Qouta
    Effective management, optimize allocating.
  • Storage for Virtualization
    Compatible with virtualization standard for VMware® vSphere™,Veeam™,Microsoft® Hyper-V.
